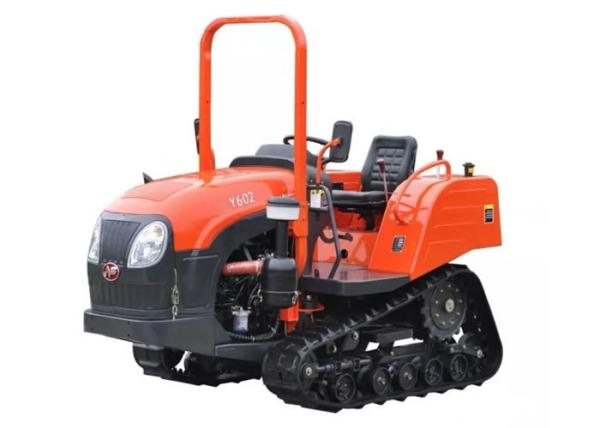

New Small Rubber Triangular Farm Crawler Tractor 60HP for Green House Orchard
Farm crawler tractors can reduce land damage and have smaller turning radius.
Features:
Comparison with wheeled Tractor
| ITEM | Crawler Tractor | Wheeled Tractor |
| Traction Force | 1.4~1.8 | 1 |
| Traction Effective | 70~80% | 55~65% |
| Ground Pressure | 47.7KPa (with 95.6 KW engine) | 104KPa (with 95.6 KW engine) |
| Maintenance | More Easily as Regid Frame Structure | disassembly |
| Fuel Consumption | 0.75 | 1 |
Technical Data:
| Model | JBY602 | |
| Size | Length x Width x Height (mm) | 2900 x 1360 x1500 |
| Weight | (kg) | 1700 |
| Minimum ground clearance | (mm) | 260 |
| Engine | Model | 3G25TC |
| Form | Inline, EFI, Water-cooled,Four strokes Diesel Engine | |
| Rated power (KW) | 44.1 | |
| Fuel | Diesel fuel | |
| Rated speed (r/min.) | 2400 | |
| Starting method | Electric start | |
| Steering Brake System | Steering system type | Planetary differential steering |
| Brake system type | Wet friction type | |
| Drive Train | Clutch type | Single function |
| Transmission type | 2(mechanical gear)+2x2(hydraulic stepless speed change) | |
| Transmission shift mode | Engagements sets of gears | |
| Walking System | Rack form | Rigid frame type |
| Track pitch section x number x width | 90 x46x300 | |
| The theoretical speed of each file(km/h) | Forward:mechanical block:4.86;8.65 hydraulic block:0~5.75; 0~10.24 | |
| Reverse:0~5.75; 0~10.24 | ||
| Working Device | Lifter type | Semi-Split |
| Tillage depth control | Force adjustment | |
| PTO form | Type I, non-independent | |
| Power output shaft speed (r/min) | 624/960 | |
| PTO shaft spline and the outer diameter (mm) | 8 x 38 | |
|
|
